Introduction

This tutorial provides good practices regarding visualisation and interpretation of trends of indicators in space. The methods discussed here are more broadly applicable, be for this tutorial we focus on occurrence cubes from which biodiversity indicators are derived.

Calculating confidence intervals with dubicube

We reuse the example introduced in bootstrap confidence interval calculation tutorial where we look at an occurrence cube of birds in Belgium between 2000 en 2024 using the MGRS grid at 10 km scale. We calculate confidence limits for the mean number of observations per grid cell over the years.

# Load packages
library(dubicube)

# Data loading and processing
library(frictionless) # Load example datasets
library(b3gbi)        # Process occurrence cubes

# General
library(ggplot2)      # Data visualisation
library(dplyr)        # Data wrangling
library(tidyr)        # Data wrangling
library(sf)           # Work with spatial objects

Loading and processing the data

We load the bird cube data from the b3data data package using frictionless (see also here).

# Read data package
b3data_package <- read_package(
  "https://zenodo.org/records/15211029/files/datapackage.json"
)

# Load bird cube data
bird_cube_belgium <- read_resource(b3data_package, "bird_cube_belgium_mgrs10")
head(bird_cube_belgium)
#> # A tibble: 6 × 8
#>    year mgrscode specieskey species          family     n mincoordinateuncerta…¹
#>   <dbl> <chr>         <dbl> <chr>            <chr>  <dbl>                  <dbl>
#> 1  2000 31UDS65     2473958 Perdix perdix    Phasi…     1                   3536
#> 2  2000 31UDS65     2474156 Coturnix coturn… Phasi…     1                   3536
#> 3  2000 31UDS65     2474377 Fulica atra      Ralli…     5                   1000
#> 4  2000 31UDS65     2475443 Merops apiaster  Merop…     6                   1000
#> 5  2000 31UDS65     2480242 Vanellus vanell… Chara…     1                   3536
#> 6  2000 31UDS65     2480637 Accipiter nisus  Accip…     1                   3536
#> # ℹ abbreviated name: ¹​mincoordinateuncertaintyinmeters
#> # ℹ 1 more variable: familycount <dbl>

We process the cube with b3gbi. First, we select 3000 random rows to make the dataset smaller. We only keep grid cells with more then 10 entries. This is to reduce the computation time for this tutorial.

set.seed(123)

# Make dataset smaller
rows <- sample(nrow(bird_cube_belgium), 3000)
bird_cube_belgium <- bird_cube_belgium[rows, ] %>%
  mutate(n_obs = n(), .by = "mgrscode") %>%
  filter(n_obs > 10) %>%
  select(-n_obs)

# Process cube
processed_cube <- process_cube(
  bird_cube_belgium,
  cols_occurrences = "n"
)
processed_cube
#>
#> Processed data cube for calculating biodiversity indicators
#>
#> Date Range: 2000 - 2024
#> Single-resolution cube with cell size 10km ^2
#> Number of cells: 134
#> Grid reference system: mgrs
#> Coordinate range:
#>    xmin    xmax    ymin    ymax
#>  460000  690000 5610000 5700000
#>
#> Total number of observations: 91206
#> Number of species represented: 316
#> Number of families represented: 67
#>
#> Kingdoms represented: Data not present
#>
#> First 10 rows of data (use n = to show more):
#>
#> # A tibble: 2,391 × 13
#>     year cellCode taxonKey scientificName    family   obs minCoordinateUncerta…¹
#>    <dbl> <chr>       <dbl> <chr>             <chr>  <dbl>                  <dbl>
#>  1  2000 31UES44   2481714 Tringa totanus    Scolo…     1                   3536
#>  2  2000 31UFS05   2481740 Calidris temminc… Scolo…     3                   3536
#>  3  2000 31UES43   2492943 Sylvia communis   Sylvi…     8                   1414
#>  4  2000 31UES44   5739317 Phoenicurus phoe… Musci…    10                   1000
#>  5  2000 31UFS63   2481700 Scolopax rustico… Scolo…     1                   3536
#>  6  2000 31UFS74   5845582 Chloris chloris   Fring…     3                   3536
#>  7  2000 31UFS65   2492960 Sylvia curruca    Sylvi…     7                   3536
#>  8  2000 31UFS07   2493091 Phylloscopus col… Phyll…    19                   1414
#>  9  2000 31UDS86   2489214 Delichon urbicum  Hirun…     3                   3536
#> 10  2000 31UES85   2473958 Perdix perdix     Phasi…     9                   1414
#> # ℹ 2,381 more rows
#> # ℹ abbreviated name: ¹​minCoordinateUncertaintyInMeters
#> # ℹ 6 more variables: familyCount <dbl>, xcoord <dbl>, ycoord <dbl>,
#> #   utmzone <int>, hemisphere <chr>, resolution <chr>

Analysis of the data

Let’s say we are interested in the mean number of observations per grid cell per year. We create a function to calculate this.

# Function to calculate statistic of interest
# Mean observations per grid cell
mean_obs_grid <- function(data) {
  data %>%
    dplyr::summarise(diversity_val = mean(obs), .by = "cellCode") %>%
    as.data.frame()
}

We get the following results:

head(
  mean_obs_grid(processed_cube$data)
)
#>   cellCode diversity_val
#> 1  31UES44      50.10526
#> 2  31UFS05      26.04762
#> 3  31UES43      35.42105
#> 4  31UFS63      16.93750
#> 5  31UFS74      24.94444
#> 6  31UFS65      26.17647

On their own, these values don’t reveal how much uncertainty surrounds them. To better understand their variability, we use bootstrapping to estimate the distribution of the yearly means. From this, we can calculate bootstrap confidence intervals.

Bootstrapping

We use the bootstrap_cube() function to perform bootstrapping (see also the bootstrap tutorial).

bootstrap_results <- bootstrap_cube(
  data_cube = processed_cube,
  fun = mean_obs_grid,
  grouping_var = "cellCode",
  samples = 1000,
  seed = 123
)
head(bootstrap_results)
#>   sample cellCode est_original rep_boot est_boot   se_boot   bias_boot
#> 1      1  31UDS65     3.285714 3.333333 3.254659 0.9333969 -0.03105526
#> 2      2  31UDS65     3.285714 4.312500 3.254659 0.9333969 -0.03105526
#> 3      3  31UDS65     3.285714 3.764706 3.254659 0.9333969 -0.03105526
#> 4      4  31UDS65     3.285714 2.818182 3.254659 0.9333969 -0.03105526
#> 5      5  31UDS65     3.285714 3.461538 3.254659 0.9333969 -0.03105526
#> 6      6  31UDS65     3.285714 3.125000 3.254659 0.9333969 -0.03105526

Interval calculation

Now we can use the calculate_bootstrap_ci() function to calculate confidence limits (see also the bootstrap confidence interval calculation tutorial). We get a warning message for BCa calculation because we are using a relatively small dataset.

ci_mean_obs <- calculate_bootstrap_ci(
  bootstrap_samples_df = bootstrap_results,
  grouping_var = "cellCode",
  type = c("perc", "bca", "norm", "basic"),
  conf = 0.95,
  data_cube = processed_cube,   # Required for BCa
  fun = mean_obs_grid                # Required for BCa
)
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.
#> Warning in norm_inter(h(t), adj_alpha): Extreme order statistics used as
#> endpoints.

# Make interval type factor
ci_mean_obs <- ci_mean_obs %>%
  mutate(
    int_type = factor(
      int_type, levels = c("perc", "bca", "norm", "basic")
    )
  )
head(ci_mean_obs)
#>   cellCode est_original  est_boot    se_boot    bias_boot int_type conf
#> 1  31UDS65     3.285714  3.254659  0.9333969 -0.031055260     perc 0.95
#> 2  31UDS66    10.333333 10.633921  6.9547024  0.300587637     perc 0.95
#> 3  31UDS74     8.833333  8.842009  2.6133948  0.008675761     perc 0.95
#> 4  31UDS75    10.000000  9.914481  2.5723065 -0.085518860     perc 0.95
#> 5  31UDS76    29.233333 29.346805 11.4128226  0.113471486     perc 0.95
#> 6  31UDS82     4.500000  4.497211  1.0289246 -0.002788502     perc 0.95
#>          ll        ul
#> 1  1.700363  5.351233
#> 2  2.334392 26.218531
#> 3  4.666667 14.666667
#> 4  4.824837 15.374711
#> 5 10.684609 54.814757
#> 6  2.500000  6.665897

We can visualise the estimate and confidence levels in separate figures.

# Read MGRS grid from repository
mgrs10_belgium <- st_read(
  "https://zenodo.org/records/15211029/files/mgrs10_refgrid_belgium.gpkg",
  quiet = TRUE
)

# Get BCa intervals
bca_mean_obs <- ci_mean_obs %>%
  filter(int_type == "bca") %>%
  # Add MGRS grid
  left_join(mgrs10_belgium, by = join_by(cellCode == mgrscode)) %>%
  st_sf(sf_column_name = "geom", crs = st_crs(mgrs10_belgium))
# Visualise estimates
bca_mean_obs %>%
  # Visualise result
  ggplot() +
  geom_sf(data = mgrs10_belgium) +
  geom_sf(aes(fill = est_original)) +
  # Settings
  scale_fill_viridis_c(option = "D") +
  labs(title = "Estimate", fill = "Legend") +
  theme_minimal()

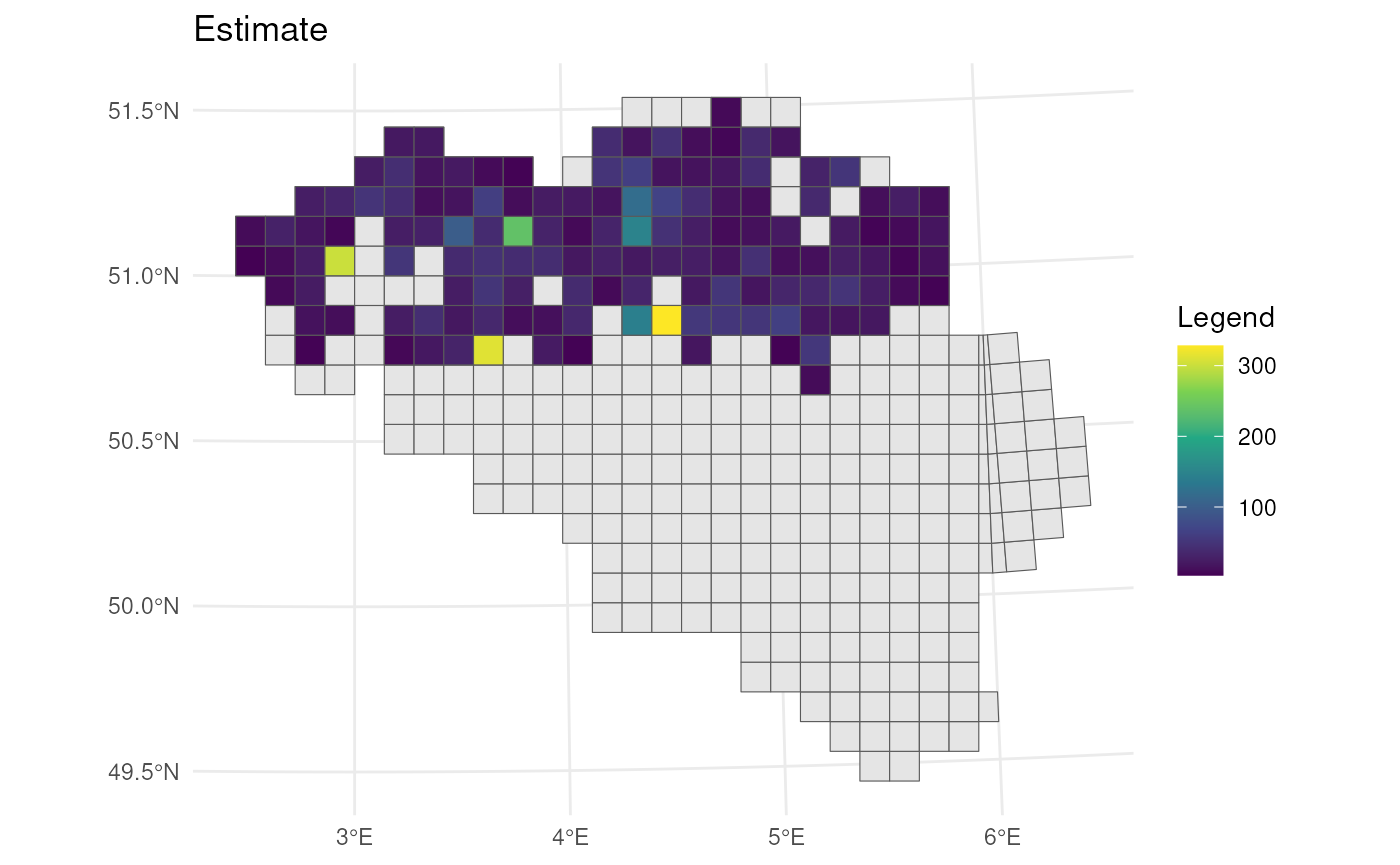

Estimates for mean number of occurrences per grid cell.

# Visualise lower CI's
bca_mean_obs %>%
  # Visualise result
  ggplot() +
  geom_sf(data = mgrs10_belgium) +
  geom_sf(aes(fill = ll)) +
  # Settings
  scale_fill_viridis_c(option = "D") +
  labs(title = "Lower confidence limit", fill = "Legend") +
  theme_minimal()

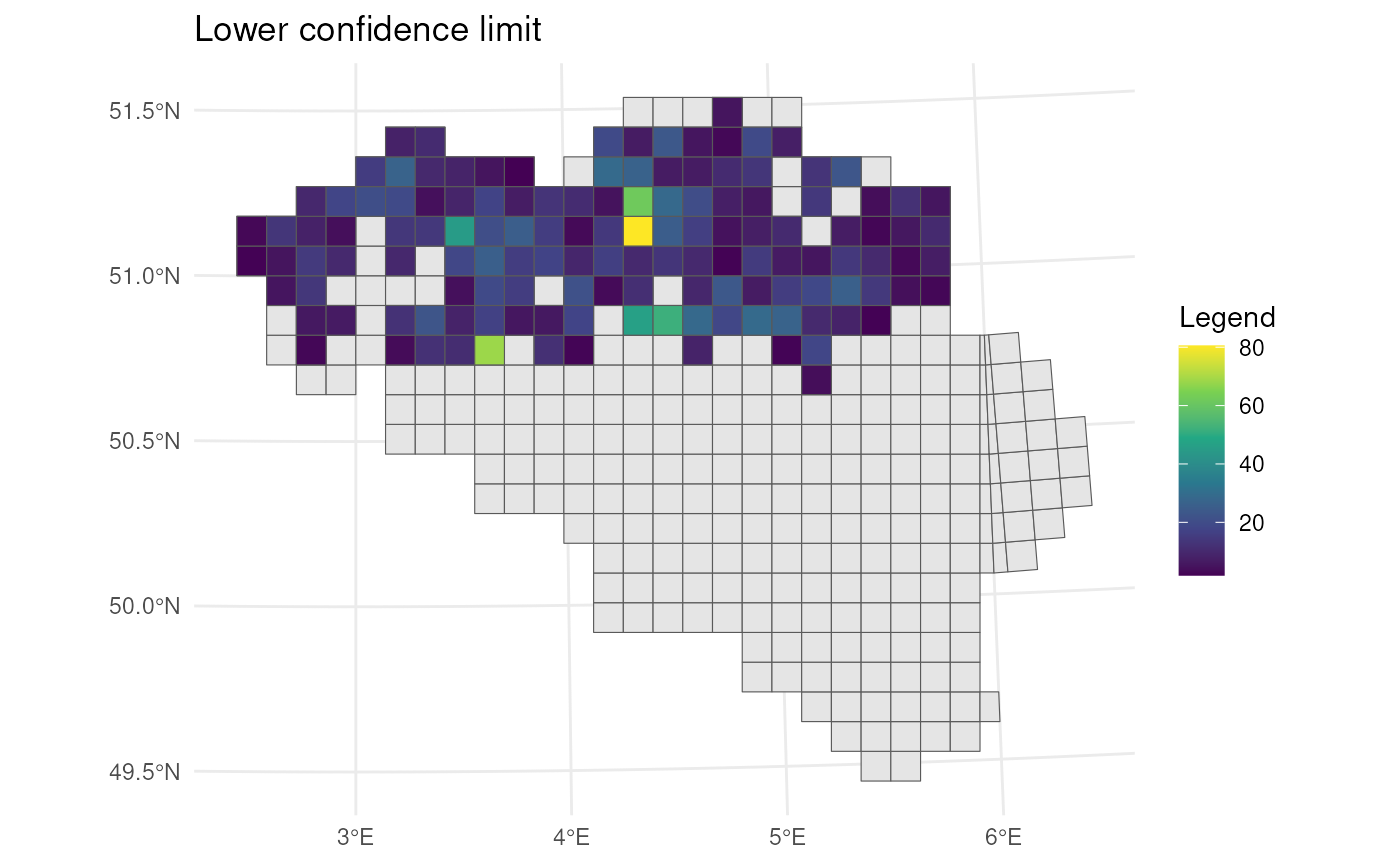

Lower CI's for mean number of occurrences per grid cell.

# Visualise upper CI's
bca_mean_obs %>%
  # Visualise result
  ggplot() +
  geom_sf(data = mgrs10_belgium) +
  geom_sf(aes(fill = ul)) +
  # Settings
  scale_fill_viridis_c(option = "D") +
  labs(title = "Upper confidence limit", fill = "Legend") +
  theme_minimal()

Upper CI's for mean number of occurrences per grid cell.

If we want to visualise estimates and uncertainty in a single figure, we need a good uncertainty measure. One straightforward option is the width of the confidence interval (CI):

\[ \text{CI width} = \text{upper limit} - \text{lower limit} \]

This directly reflects the uncertainty — wider intervals indicate greater uncertainty.

To allow for comparisons across spatial units with different magnitudes, we may prefer a relative measure of uncertainty such as the relative CI half-width, calculated as:

\[ \frac{\text{CI width}}{2 \times \text{estimate}} \]

This expresses the margin of error as a proportion of the estimate, which is easier to interpret. For example, a value of 0.1 implies ±10% uncertainty around the point estimate (assuming symmetric intervals).

Alternatively, we can use the bootstrap standard error as a measure of uncertainty. Similar to CI width, it can be expressed in absolute or relative terms (e.g., standard error divided by the estimate) depending on whether you want to visualise raw or normalized uncertainty.

Measure Formula Description
CI width ul - ll Absolute uncertainty
Relative CI width (ul - ll) / estimate Total CI width scaled by estimate
Relative CI half-width (ul - ll) / (2 × estimate) Margin of error relative to estimate
Bootstrap SE sd(bootstrap replicates) Standard deviation of bootstrap samples
Relative bootstrap SE sd(...) / estimate Standard error relative to estimate

For visualising both the estimate and uncertainty in a single map, we can use circles within the grid cells that vary in transparency (best w.r.t. user performance ~ accuracy, speed), or in blurriness (best w.r.t. user intuitiveness) (Kinkeldey et al., 2014; MacEachren et al., 2005, 2012).

Transparency

Let’s visualise the relative half-width where we use a larger transparency for larger uncertainty. Transparency can be scaled using the scale_alpha() function from ggplot2.

# Calculate center points
st_centroid(bca_mean_obs) %>%
  mutate(x = st_coordinates(geom)[, 1],
         y = st_coordinates(geom)[, 2],
         # Calculate uncertainty measure
         uncertainty = (ul - ll) /  (2 * est_original)) %>%
  # Visualise
  ggplot() +
  geom_sf(data = mgrs10_belgium) +
  geom_point(
    aes(x = x, y = y, colour = est_original, alpha = uncertainty),
    size = 5
  ) +
  # Settings
  scale_colour_viridis_c(option = "D") +
  scale_alpha(range = c(1, 0.3)) +    # Scale accordingly
  labs(colour = "Estimate", alpha = "Uncertainty",
       x = "", y = "") +
  theme_minimal()

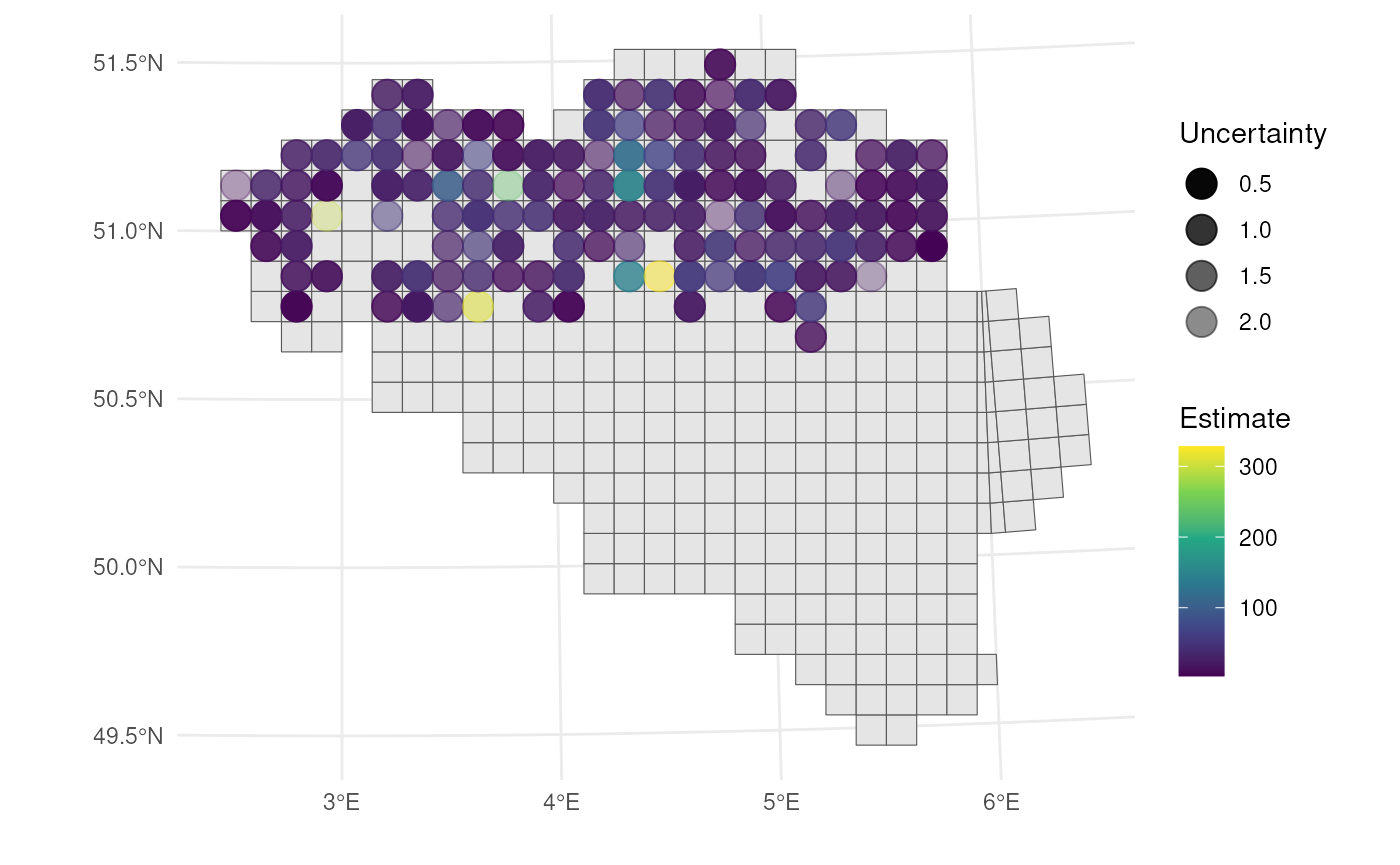

Spatial uncertainty using transparency.

To make the visualisation even more clear, we can also vary size based on the uncertainty measure. Size can be scaled using the scale_size() function from ggplot2.

# Calculate center points
st_centroid(bca_mean_obs) %>%
  mutate(x = st_coordinates(geom)[, 1],
         y = st_coordinates(geom)[, 2],
         # Calculate uncertainty measure
         uncertainty = (ul - ll) /  (2 * est_original)) %>%
  # Visualise
  ggplot() +
  geom_sf(data = mgrs10_belgium) +
  geom_point(
    aes(x = x, y = y, colour = est_original, alpha = uncertainty,
        size = uncertainty)
  ) +
  # Settings
  scale_colour_viridis_c(option = "D") +
  scale_alpha(range = c(1, 0.3)) +    # Scale accordingly
  scale_size(range = c(5, 2)) +       # Scale accordingly
  labs(colour = "Estimate", alpha = "Uncertainty", size = "Uncertainty",
       x = "", y = "") +
  theme_minimal()

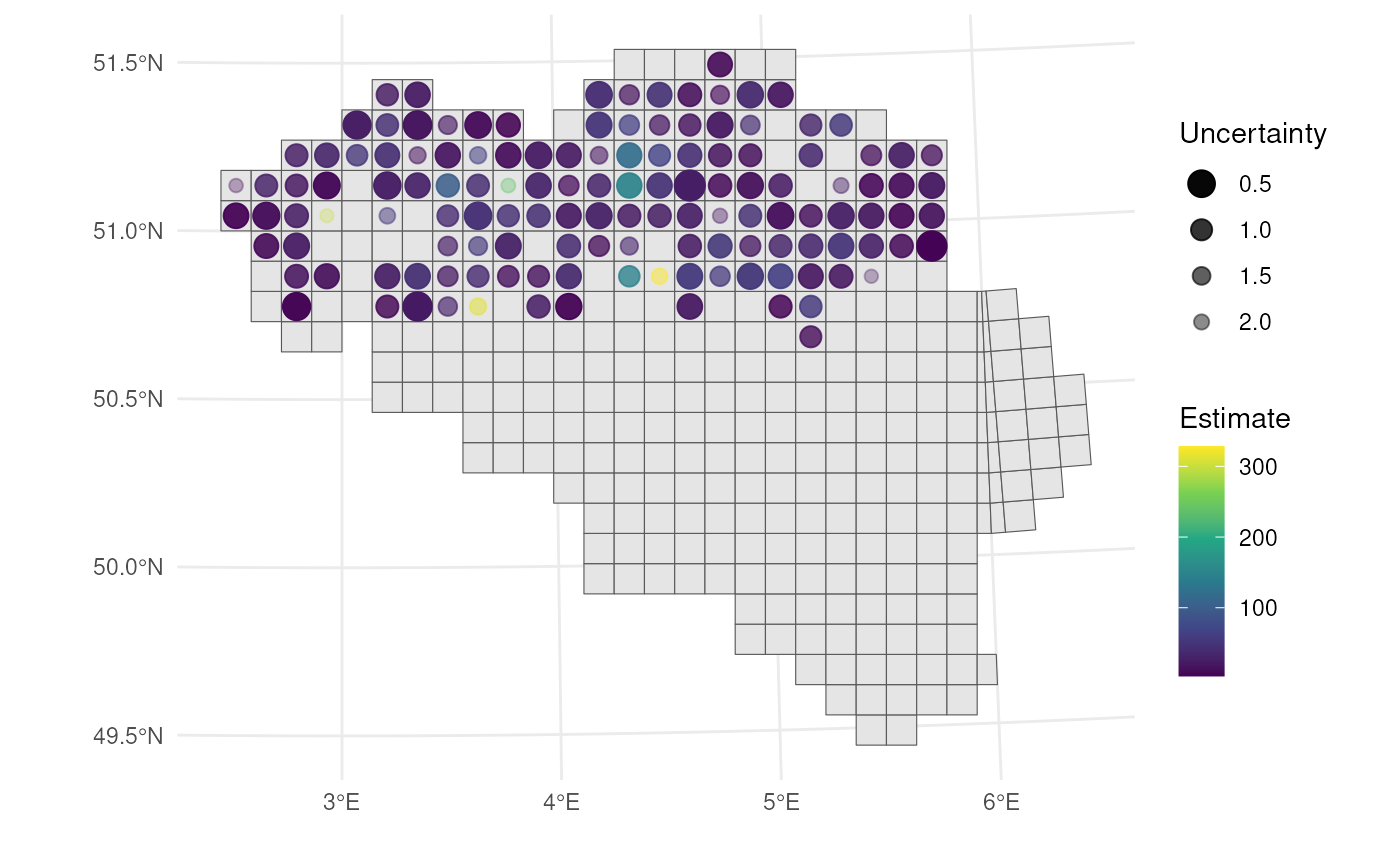

Spatial uncertainty using transparency and size.

Blurriness

Unlike transparency or point size, blurriness is not natively supported in ggplot2. Therefore, we present a custom figure using a hard-coded example that illustrates the difference between blurriness and transparency as visual indicators of spatial uncertainty.

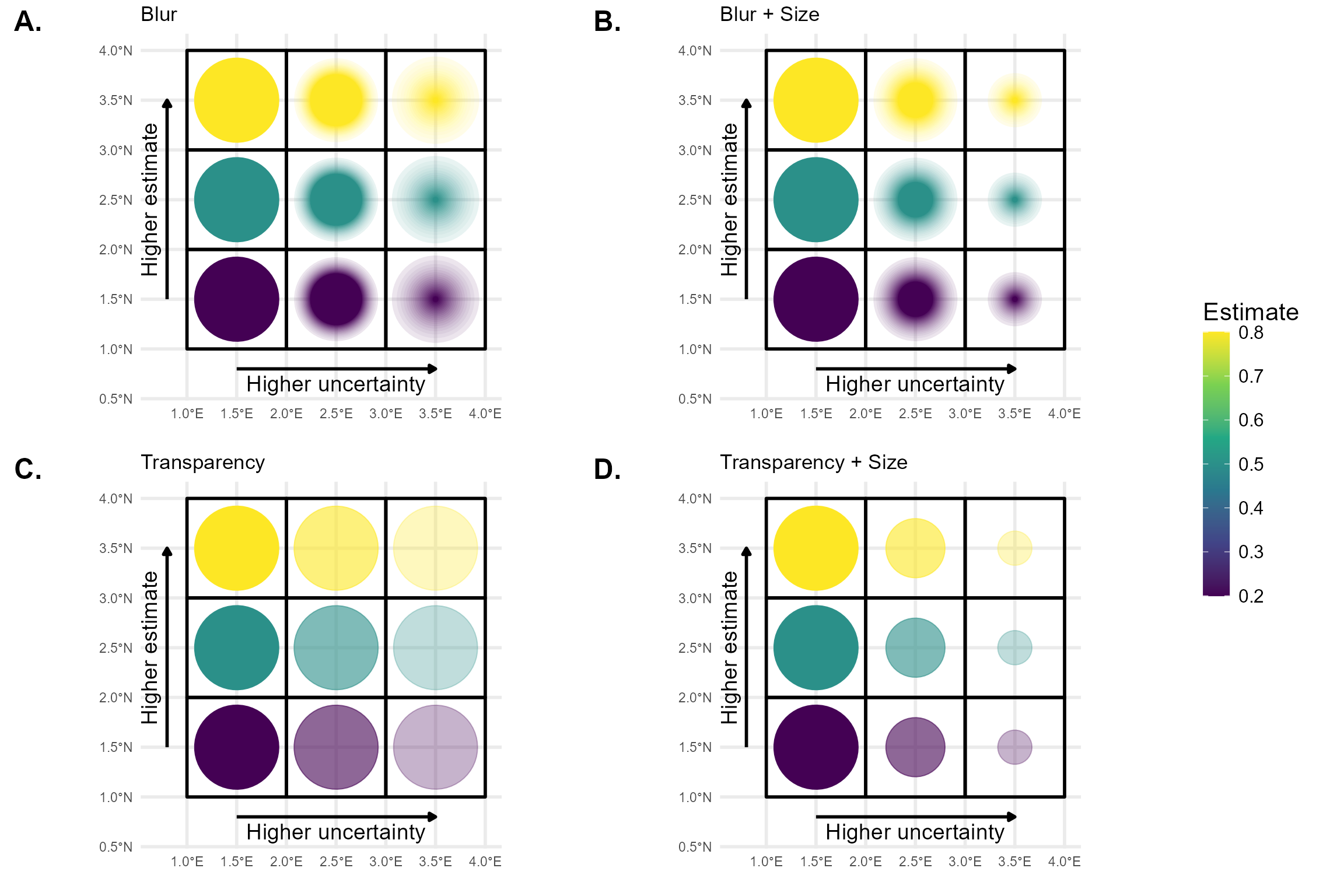

Compare spatial blur and transparency.

The figure was created using the R packages ggplot2, dplyr, sf, and ggblur. The ggblur package provides a useful starting point for implementing blur effects in ggplot2 plots, but it does not fully meet our requirements. In ggblur, blurriness is simulated by plotting the original point together with a series of increasingly larger and more transparent copies behind it. This creates a visual “halo” effect that mimics blur. However, ggblur increases both the size and transparency of the blurred copies simultaneously, whereas we require more flexibility: the maximum size of the blur should be able to remain constant or even decrease, while the perceived blur increases. To achieve this more controlled and flexible behaviour, we would need to develop a new, dedicated R package that allows finer control over the relationship between size and blur.

References

Kinkeldey, C., MacEachren, A. M., & Schiewe, J. (2014). How to Assess Visual Communication of Uncertainty? A Systematic Review of Geospatial Uncertainty Visualisation User Studies. The Cartographic Journal, 51(4), 372–386. https://doi.org/10.1179/1743277414Y.0000000099

MacEachren, A. M., Robinson, A., Hopper, S., Gardner, S., Murray, R., Gahegan, M., & Hetzler, E. (2005). Visualizing Geospatial Information Uncertainty: What We Know and What We Need to Know. Cartography and Geographic Information Science, 32(3), 139–160. https://doi.org/10.1559/1523040054738936

MacEachren, A. M., Roth, R. E., O’Brien, J., Li, B., Swingley, D., & Gahegan, M. (2012). Visual Semiotics & Uncertainty Visualization: An Empirical Study. IEEE Transactions on Visualization and Computer Graphics, 18(12), 2496–2505. https://doi.org/10.1109/TVCG.2012.279
