Use coverage-based methods to estimate Hill diversity measures over a gridded map or as a time series. Three Hill diversity measures are covered:
Species richness - hill0_map() and
hill0_ts()
Hill-Shannon diversity - hill1_map() and
hill1_ts()
Hill-Simpson diversity - hill2_map() and
hill2_ts()
(see 'Details' for more information).
Usage
hill0_map(
data,
coverage = 0.95,
cutoff_length = 5,
data_type = c("incidence", "abundance"),
assume_freq = FALSE,
...
)
hill0_ts(data, coverage = 0.95, cutoff_length = 5, conf_level = 0.95, ...)
hill1_map(
data,
cutoff_length = 5,
coverage = 0.95,
data_type = c("incidence", "abundance"),
assume_freq = FALSE,
...
)
hill1_ts(data, cutoff_length = 5, coverage = 0.95, conf_level = 0.95, ...)
hill2_map(
data,
cutoff_length = 5,
coverage = 0.95,
data_type = c("incidence", "abundance"),
assume_freq = FALSE,
...
)
hill2_ts(data, cutoff_length = 5, coverage = 0.95, conf_level = 0.95, ...)Arguments
- data
A data cube object (class 'processed_cube').
- coverage
(Optional) The sample coverage value for the estimator. Default is 0.95.
- cutoff_length
(Optional) The minimum number of data points for each grid cell. Grid cells with fewer data points will be removed before calculations to avoid errors. Default is 5.
- data_type
(Optional) If set to "incidence", occurrences are converted to incidence data. Observations are treated as presence/absence and years are used as sampling units. The number of years in which a species was observed within a grid cell are then summarized. If set to "abundance", occurrences are summed across years for each species as a proxy for abundance. Default is "incidence".
- assume_freq
(Optional) If TRUE, the sum of observations for a species within a grid cell is assumed to be a sum of sampling sites in which that species was observed. The maximum number of observations for any species within a grid cell is then taken as a proxy for the total number of sampling sites for that cell. This parameter is ignored if data_type is set to "abundance". It is advisable to leave this on FALSE unless you are certain of how your data is structured. Default is FALSE.
- ...
Arguments passed on to
compute_indicator_workflowci_type(Optional) Type of bootstrap confidence intervals to calculate. (Default: "norm"). Select "none" to avoid calculating bootstrap CIs.
cell_size(Optional) Length of grid cell sides, in km or degrees. If NULL, this will be automatically determined according to the geographical level selected. This is 100 km or 1 degree for 'continent' or 'world', 10 km or (for a degree-based CRS) the native resolution of the cube for 'country', 'sovereignty' or 'geounit'. If level is set to 'cube', cell size will be the native resolution of the cube for a degree-based CRS, or for a km-based CRS, the cell size will be determined by the area of the cube: 100 km for cubes larger than 1 million sq km, 10 km for cubes between 10 thousand and 1 million sq km, 1 km for cubes between 100 and 10 thousand sq km, and 0.1 km for cubes smaller than 100 sq km. (Default: NULL)
level(Optional) Spatial level: 'cube', 'continent', 'country', 'world', 'sovereignty', or 'geounit'. (Default: 'cube')
region(Optional) The region of interest (e.g., "Europe"). This parameter is ignored if level is set to 'cube' or 'world'. (Default: NULL)
ne_type(Optional) The type of Natural Earth data to download: 'countries', 'map_units', 'sovereignty', or 'tiny_countries'. This parameter is ignored if level is set to 'cube' or 'world'. (Default: "countries")
ne_scale(Optional) The scale of Natural Earth data to download: 'small' - 110m, 'medium' - 50m, or 'large' - 10m. (Default: "medium")
output_crs(Optional) The CRS you want for your calculated indicator. (Leave blank to let the function choose a default based on grid reference system.)
first_year(Optional) Exclude data before this year. (Uses all data in the cube by default.)
last_year(Optional) Exclude data after this year. (Uses all data in the cube by default.)
spherical_geometry(Optional) If set to FALSE, will temporarily disable spherical geometry while the function runs. Should only be used to solve specific issues. (Default is TRUE).
make_valid(Optional) Calls st_make_valid() from the sf package after creating the grid. Increases processing time but may help if you are getting polygon errors. (Default is FALSE).
num_bootstrap(Optional) Set the number of bootstraps to calculate for generating confidence intervals. (Default: 100)
shapefile_path(optional) Path of an external shapefile to merge into the workflow. For example, if you want to calculate your indicator particular features such as protected areas or wetlands.
shapefile_crs(Optional) CRS of a .wkt shapefile. If your shapefile is .wkt and you do NOT use this parameter, the CRS will be assumed to be EPSG:4326 and the coordinates will be read in as lat/long. If your shape is NOT a .wkt the CRS will be determined automatically.
invert(optional) Calculate an indicator over the inverse of the shapefile (e.g. if you have a protected areas shapefile this would calculate an indicator over all non protected areas within your cube). Default is FALSE.
include_land(Optional) Include occurrences which fall within the land area. Default is TRUE. *Note that this purely a geographic filter, and does not filter based on whether the occurrence is actually terrestrial. Grid cells which fall partially on land and partially on ocean will be included even if include_land is FALSE. To exclude terrestrial and/or freshwater taxa, you must manually filter your data cube before calculating your indicator.
include_ocean(Optional) Include occurrences which fall outside the land area. Default is TRUE. Set as "buffered_coast" to include a set buffer size around the land area rather than the entire ocean area. *Note that this is purely a geographic filter, and does not filter based on whether the occurrence is actually marine. Grid cells which fall partially on land and partially on ocean will be included even if include_ocean is FALSE. To exclude marine taxa, you must manually filter your data cube before calculating your indicator.
buffer_dist_km(Optional) The distance to buffer around the land if include_ocean is set to "buffered_coast". Default is 50 km.
force_grid(Optional) Forces the calculation of a grid even if this would not normally be part of the pipeline, e.g. for time series. This setting is required for the calculation of rarity, and is turned on by the ab_rarity_ts and area_rarity_ts wrappers. (Default: FALSE)
- conf_level
(Optional) Confidence level for bootstrap confidence intervals. Only applies to temporal indicators. Default is 0.95.
Value
An S3 object with the classes 'indicator_map' or 'indicator_ts' and 'hill0' or 'hill1' or 'hill2' containing the calculated indicator values and metadata.
Details
Hill diversity
Hill (1973) introduced the concept of Hill diversity, which assumes that the number and relative abundance of species are inseparable components of diversity. Hill diversity uses a single equation to calculate multiple measures of diversity by varying a single parameter ℓ, which changes the emphasis on rare vs common species (Roswell et al., 2019). It represents the mean rarity of sampled species, and is calculated as: $$ D = \left( \sum_{i=1}^{S} p_i^\ell \right)^{1/(1-\ell)} $$where D is diversity, S is the number of species, pi is the proportion of individuals belonging to species i, ri is the rarity of species i, and ℓ determines the rarity scale for the mean. While ℓ can theoretically take almost any value, three common measures of diversity are special cases: species richness, and modified versions of the Shannon and Simpson diversity indices (Roswell et al., 2019). These three measures occur when ℓ takes the value of 1, 0 (or near-zero, as ℓ cannot actually take the value of 0), or -1, respectively.
Species Richness (ℓ = 1): $$ D = S $$
Hill-Shannon Diversity (ℓ ≈ 0): $$ D = e^{-\sum_{i=1}^{S} p_i \ln(p_i)} $$
Hill-Simpson Diversity (ℓ = -1): $$ D = \frac{1}{\sum_{i=1}^{S} p_i^2} $$
Richness uses an arithmetic scale (the arithmetic mean), thus giving rare species a lot of leverage. By contrast, Hill-Shannon diversity uses a logarithmic scale (the geometric mean), treating common and rare species equally, and Hill-Simpson diversity uses a reciprocal scale (the harmonic mean), giving common species higher leverage.
Coverage-based estimation
Hill diversity values can be estimated through different standardisation procedures as a way to mitigate the effects of sample size and sampling biases. One way to do this is by equalising sample size by calculating a species accumulation curve (a plot of cumulative species richness as a function of sample size) for each year or grid cell. The smallest sample size from among all the grid cells or years in the dataset is used as a reference to select richness values from each curve. This is called rarefaction. It is also possible to use a larger sample size as a reference, but this requires extrapolation of smaller samples, which is more prone to error than rarefaction.
However, results from sample-size based estimation can be problematic as they depend on both richness and evenness. A sample from a community with a more even distribution of individuals across species is likely to show higher richness than a sample of the same size from a community where many species are rare, as the rare species are less likely to appear in the sample. Similarly, a community containing a lot of species will appear less rich than it actually is if the sample size used for comparison is too small. Detectability also plays an important part; hard to detect species are less likely to appear in the sample, so communities in which rare species are more easily detectable are likely to yield richer samples.
Another way to estimate species richness is to standardise by coverage. The iNEXT package (Chao et al., 2014; Hsieh et al., 2016) for R is used to estimate species richness at an equal level of coverage (e.g. 0.95) for each cell or year in a biodiversity data cube. Coverage is the proportion of individuals in the community belonging to species in the sample. So, at a coverage of 0.95, 95% of individuals in the community belong to species detected in the sample while 5% belong to species that are not detected in the sample. Coverage is estimated based on the frequencies of species already in the sample. It can be illustrated using a species accumulation curve, the slope of which represents the probability of detecting a new species with the next individual you sample from a community. At a sample size of zero, the slope would be one, meaning the next individual sampled has a 100% probability of being a species not already in the sample. Therefore, a coverage value of one corresponds to the asymptote of a species accumulation curve (slope of zero), meaning no new species would be uncovered through further sampling.
References
Hill, M. O. (1973). Diversity and evenness: a unifying notation and its consequences. Ecology, 54(2), 427-432.
Roswell, M., Shipley, J., & Ewers, R. M. (2019). A conceptual guide to measuring and interpreting functional diversity. Journal of Applied Ecology, 56(12), 2533-2543.
Chao, A., Gotelli, N. J., Hsieh, T. C., Sander, E. L., Ma, K. H., Colwell, R. K., & Ellison, A. M. (2014). Rarefaction and extrapolation with Hill numbers: a framework for sampling and estimation in species diversity studies. Ecological monographs, 84(1), 45-67.
Hsieh, T. C., Ma, K. H., & Chao, A. (2016). iNEXT: an R package for rarefaction and extrapolation of species diversity (Hill numbers). Methods in Ecology and Evolution, 7(12), 1451-1456.
Examples
if (FALSE) { # \dontrun{

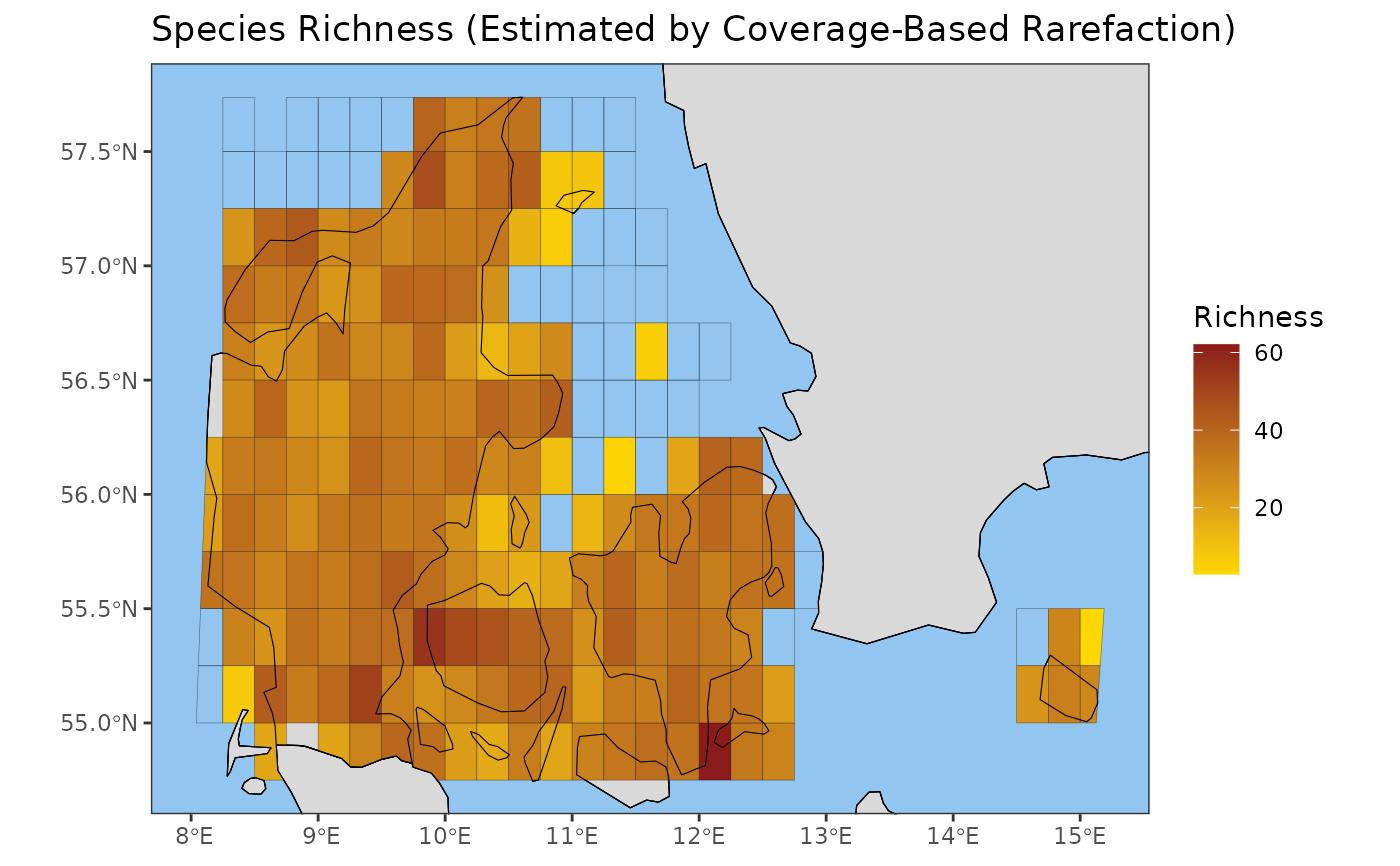

h0_map <- hill0_map(example_cube_1, level = "country", region = "Denmark")
plot(h0_map)
} # }
if (FALSE) { # \dontrun{

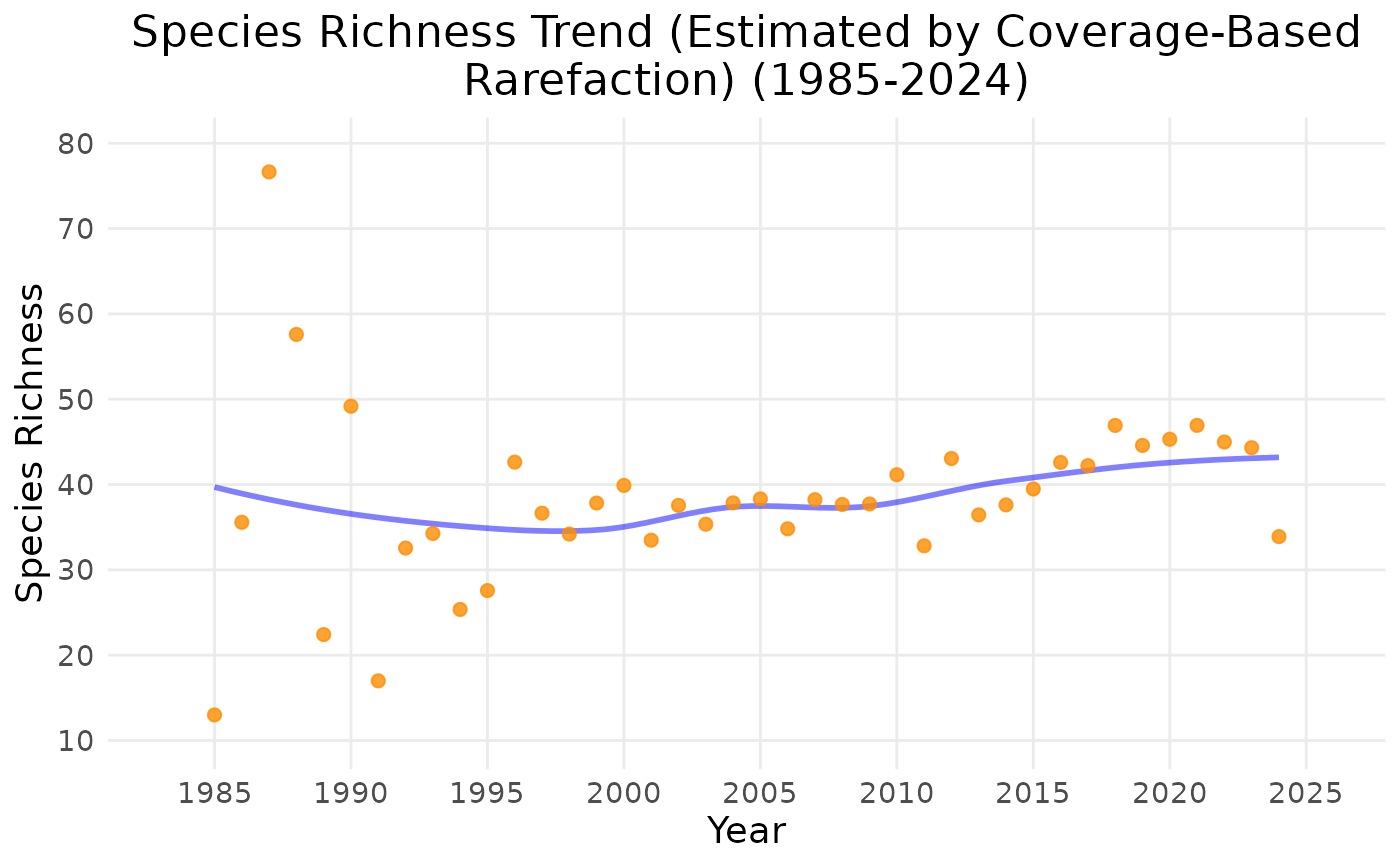

h0_ts <- hill0_ts(example_cube_1, first_year = 1985)
plot(h0_ts)
} # }
if (FALSE) { # \dontrun{

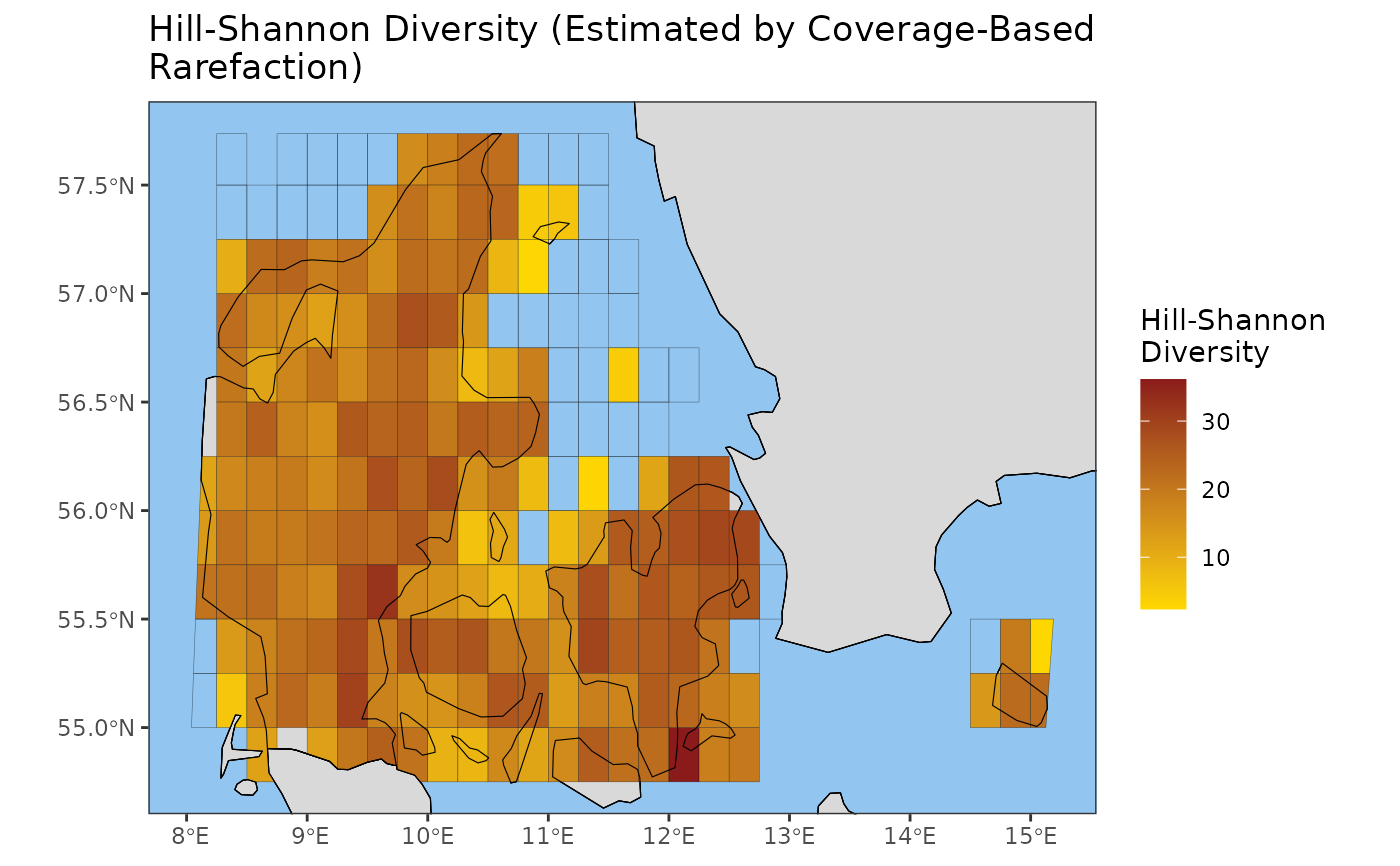

h1_map <- hill1_map(example_cube_1, level = "country", region = "Denmark")
plot(h1_map)
} # }
if (FALSE) { # \dontrun{

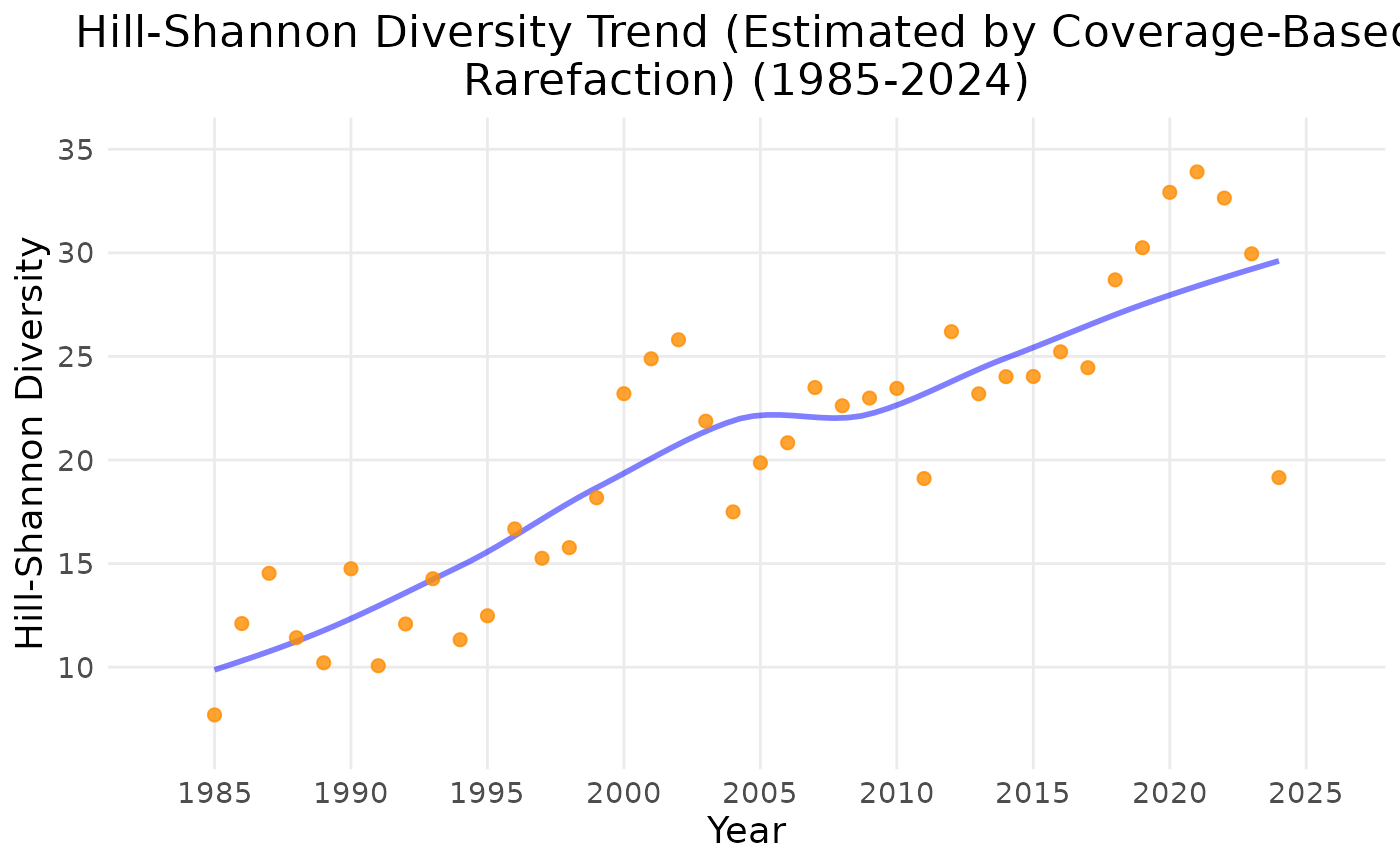

h1_ts <- hill1_ts(example_cube_1, first_year = 1985)
plot(h1_ts)
} # }
if (FALSE) { # \dontrun{

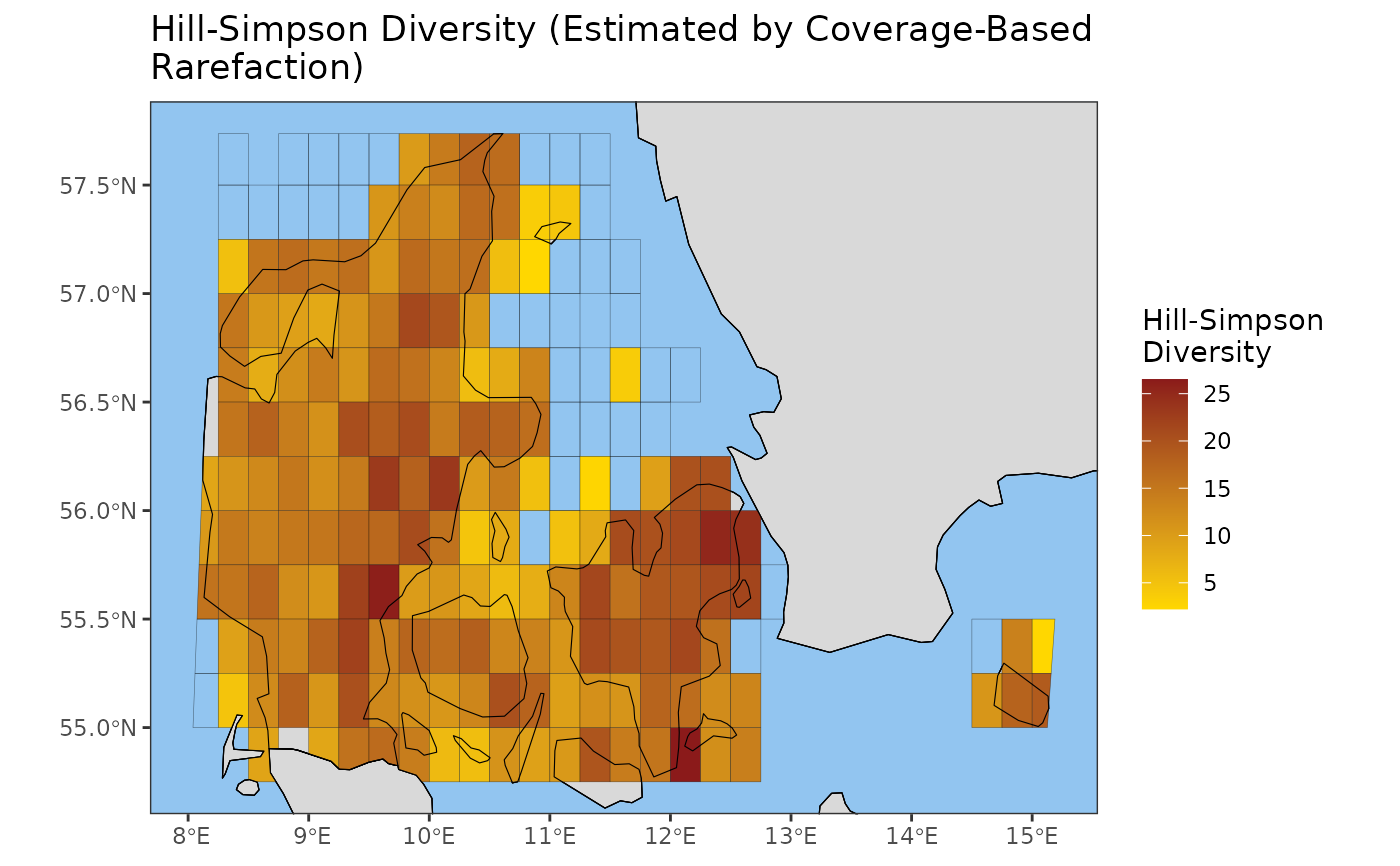

h2_map <- hill2_map(example_cube_1, level = "country", region = "Denmark")
plot(h2_map)
} # }
if (FALSE) { # \dontrun{

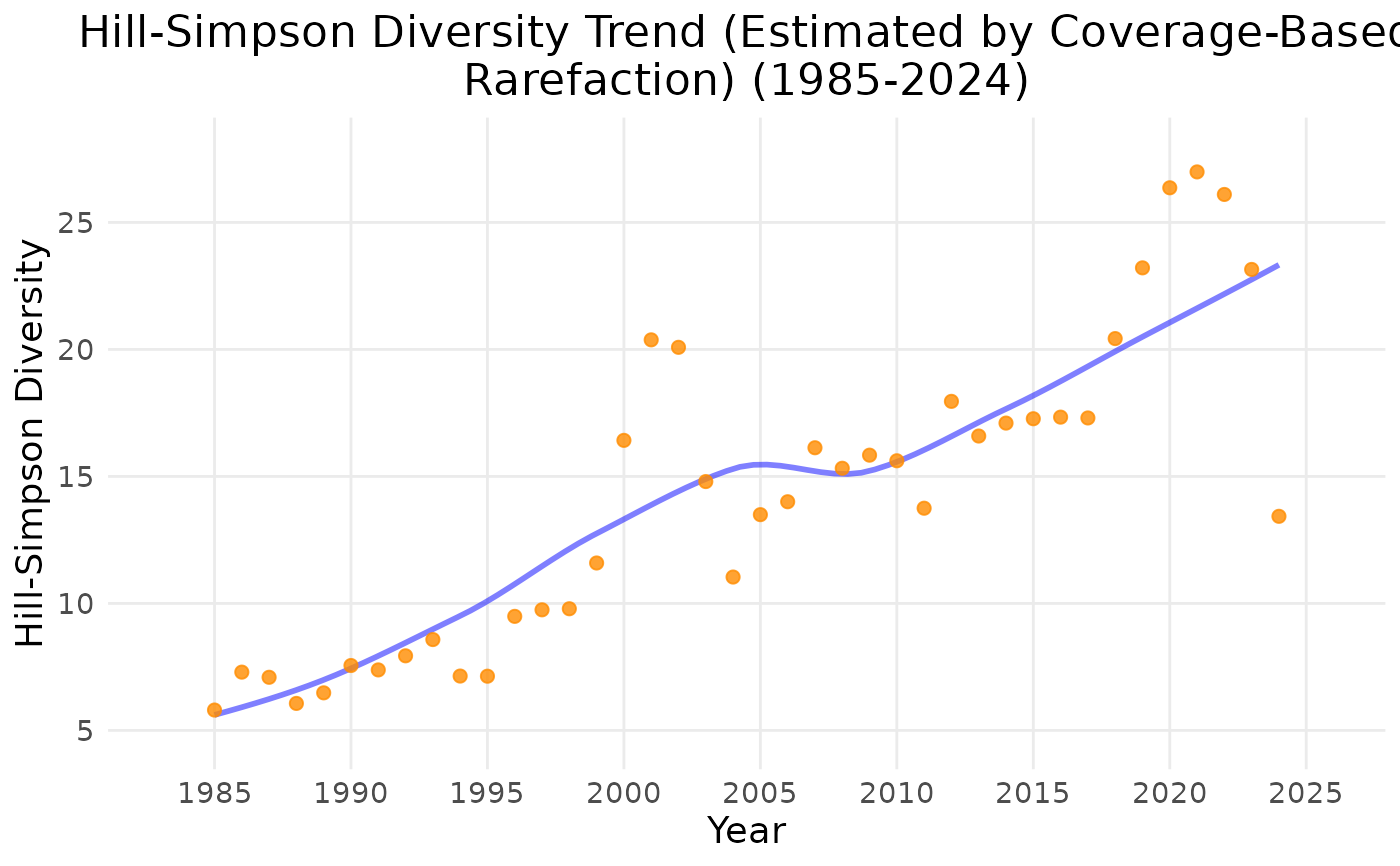

h2_ts <- hill2_ts(example_cube_1, first_year = 1985)
plot(h2_ts)
} # }
